135W (9 x 15W) Philips RGBAW LEDs – 13° Beam Angle

AX10 is the brightest and the most advanced battery operated entertainment spotlight; it features high quality Philips RGBAW LEDs, TruColour calibration, long-life LG-Chem batteries and an uniquely engineered housing to increase cooling and optimize performance.  Battery powered, remote controlled IP65, and a carry handle built into its stand.

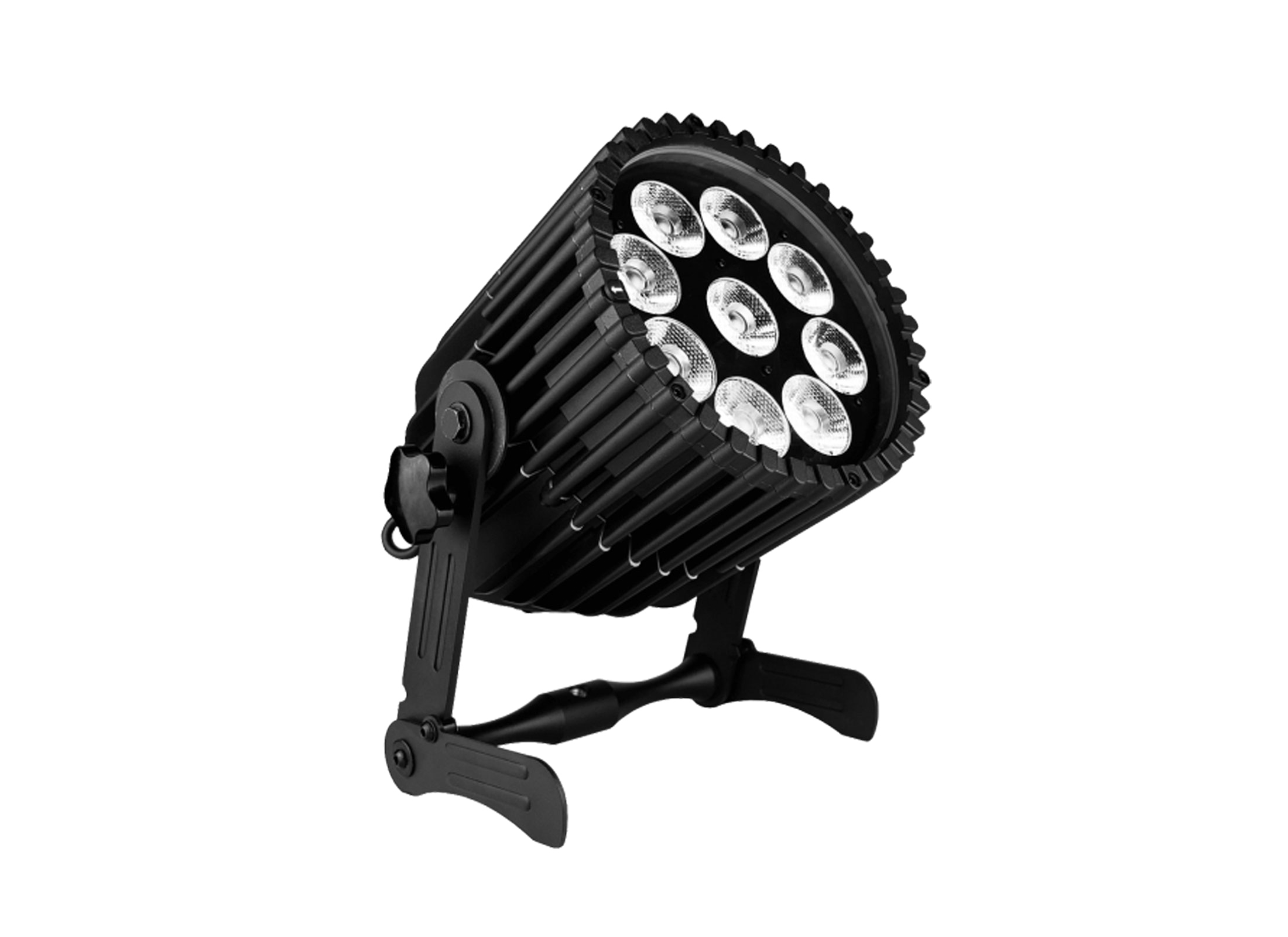

AX10 SpotMax
AX10 SpotMax
Optical

Colours: RGBAW
Light Output: 135W
Luminous Flux: 3350Lm
Emmittance(@2m): 10350Lx
CRI:92
Strobe: 0-25Hz
Beam Angle: 13 ˚
Pixels: 1

Control

Wireless Modules: 865-870MHz | 902-928MHz | 2.4GHz
Range: 300m | 330 Yards
Wired DMX: not supported
Wireless DMX: CRMX & others, excluding W-DMX G5, City Theatrical

Electrical

Battery: LG Chem Lithium-ion
Battery Lifetime: 70% after 300 cycles
Battery Runtime: Up to 20 hours
LED Lifetime: 50.000 Hours
Charging time (nominal): 7 Hours
Input Voltage (charger): 90-264V 47-63Hz
Input Current (light):2A / 115VAC | ~1.0A / 230VAC
Inrush current: Cold start 70A / 230VAC

Construction

Housing: Aluminum
IP Rating: IP65
Relative humidity: 0-100%
Operating Temperature: 0-40 ˚C | 32-104 ˚F
Weight: 7.98kg |17.5Lbs
Dimensions: 279 x 296 x 253mm | 10.9 x 11.6 x 9.9 (inch)


Astera ARC1


AsteraBox


CRMX Nova TX


W-DMX Transmitter

AX7 SpotLite by Astera LED Technology32 ° Filter (AX10-DDSK) (included)

AX7 SpotLite by Astera LED Technology17 ° x 46 ° WallWash filter(AX10-WWDSK) (included)

AX7 SpotLite by Astera LED Technology17° x 46° Rotating filter (AX10-ROTAD)

AX7 SpotLite by Astera LED TechnologyCharging Case (AX10-CHRCSE)

AX10 SpotMaxSuper Bolt (AX10-BLT)


Astera System

A smart lighting control system where Infrared remote, wireless DMX and app work together to enable big setups on stage & events that can be set up, monitored and adjusted in a fast and convenient way.

Control Fixtures

Create complex programs out of colors, effects and settings.  The fixtures will remember and repeat these effects without requiring a constant wireless link.  Quickly create groups of lights, assign positions and select which fixtures should receive commands.

Monitor Lights

Keep a complete overview over the status and all settings of your fixtures while you operate them.
View battery status, radio signal, DMX address and which stage lights or fixture you have targeted.
Diagnose individual fixtures and even get informed if one is being moved or switched off.
This works while you control lights by the app but also if lights are controlled via DMX.

Set-Up Faster

Set up your entertainment fixtures conveniently out of the distance.
Set DMX address and DMX footprint for one or several fixtures; over 50 units can be prepared in less than 5 minutes out of a distance.
After your job, do a quick master reset of all settings or a partial one of only selected settings.

LumenRadio

The AsteraBox works as a wireless DMX transmitter; just connect it with the included XLR adapter to your DMX console and you can transmit 1 DMX universe with CRMX technology, the most stable Wireless DMX protocol available in the Stage Lighting and entertainment industry.

Full Compatibility

Astera fixtures can be controlled by LumenRadio CRMX transmitters and also by W-DMX from wireless solutions (up to G4S).
These Battery Operated Fixtures support both wireless DMX standards so you can use them together with almost all other wireless fixtures and transmitters.

Simple commands like ON/OFF, colors, preloaded effects etc can be sent with our infrared remote control directly to the fixtures.
When programming lights with the AsteraApp, the IR remote can be used for confirming settings on individual entertainment fixtures.
