Film Lighting Tube | Titan Tube was especially designed for the Film, Broadcasting and Cinema industries.

Optimized for an ultra-high TLCI, a very high CRI and peak brightness, colors as well as Hue, Saturation and Intensity can be set directly on the tube.  In addition, the Titan Tube now accepts wired DMX via a special power/data combination cable.

Titan Tube: The Ultimate Film Lighting Tube for TV, Cinema and Photography.

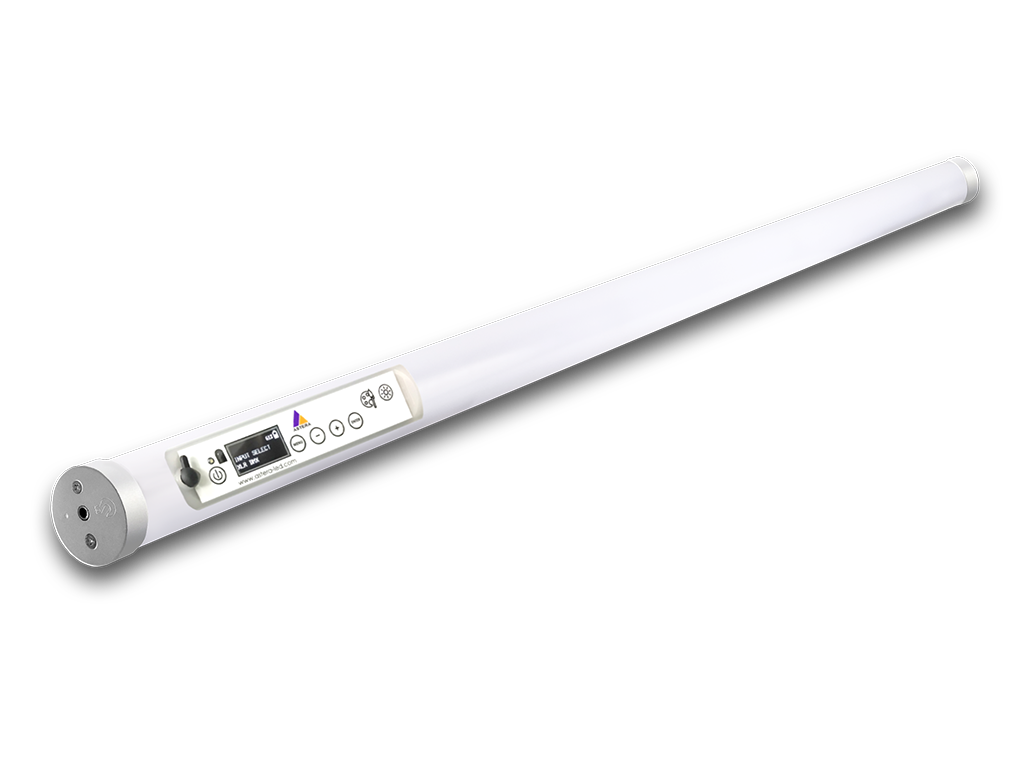

TitanTube by Astera


Optical

Colours: Red, Green, Blue, Mint, Amber
Total LED power: 72W
Maximum power draw: 48W
TLCI: ≥96
CRI: ≥96
Luminous flux: 2900Lm
Emittance @1m: 785Lx
Strobe: 0-25Hz
Beam Angle: 120˚
Field Angle: 180˚
Pixels: 16

Control

Backside Display with HSI control
Infrared
Wireless Modules: 865-870MHz | 902-928MHz | 2.4GHz
Range: 300m | 330 Yards
DMX: Wired + Wireless (CRMX & W-DMX)

Electrical

Battery: LG Chem Lithium-ion
Battery Lifetime: 70% after 300 cycles
Battery Runtime: Up to 20 hours
LED Lifetime: 50.000 Hours
Charging time (nominal): 3 Hours
Input Voltage : 24V 2A

Construction

Housing: Polycarbonate, metal endcap
IP Rating: IP65
Relative humidity: 0-100%
Operating Temperature: 0-40 ˚C | 32-104 ˚F
Weight: 1.35kg |3Lbs
Dimensions: Ø42 x 1035mm | Ø1.6” x H40.7”

Astera ARC1 Controller
Astera ARC1
AsteraBox™
AsteraBox
CRMX Nova TX
CRMX Nova TX
W-DMX Transmitter
W-DMX Transmitter

Astera System

A smart lighting control system where Infrared remote, wireless DMX and app work together to enable big setups on stage & events that can be set up, monitored and adjusted in a fast and convenient way.

Control Fixtures

Create complex programs out of colors, effects and settings.  The fixtures will remember and repeat these effects without requiring a constant wireless link.  Quickly create groups of lights, assign positions and select which fixtures should receive commands.

Monitor Lights

Keep a complete overview over the status and all settings of your fixtures while you operate them.
View battery status, radio signal, DMX address and which stage lights or fixture you have targeted.
Diagnose individual fixtures and even get informed if one is being moved or switched off.
This works while you control lights by the app but also if lights are controlled via DMX.

Set-Up Faster

Set up your entertainment fixtures conveniently out of the distance.
Set DMX address and DMX footprint for one or several fixtures; over 50 units can be prepared in less than 5 minutes out of a distance.
After your job, do a quick master reset of all settings or a partial one of only selected settings.

LumenRadio

The AsteraBox works as a wireless DMX transmitter; just connect it with the included XLR adapter to your DMX console and you can transmit 1 DMX universe with CRMX technology, the most stable Wireless DMX protocol available in the Stage Lighting and entertainment industry.

Full Compatibility

Astera fixtures can be controlled by LumenRadio CRMX transmitters and also by W-DMX from wireless solutions (up to G4S).
These Battery Operated Fixtures support both wireless DMX standards so you can use them together with almost all other wireless fixtures and transmitters.

Simple commands like ON/OFF, colors, preloaded effects etc can be sent with our infrared remote control directly to the fixtures.
When programming lights with the AsteraApp, the IR remote can be used for confirming settings on individual entertainment fixtures.

Astera LED Lighting System

PowerBox

The PowerBox is an efficient tool to wire your Titan Tubes during jobs with power and data whenever you don’t want to use them wirelessly.  In addition, the PowerBox can be stored inside the Titan Tube Charging case so you can charge your tubes after a job inside the case without having to remove tubes or PowerBox.

Titan Tube: The Ultimate Film Lighting Tube for TV, Cinema and Photography.

Features Unique to Titan Tube

Titan Tube: The Ultimate Film Lighting Tube for TV, Cinema and Photography.
TruColor Calibration

Individually calibrated lights lead to 100% color consistency and exact color reproduction of color temperature and filter gels.

Titan Tube: The Ultimate Film Lighting Tube for TV, Cinema and Photography.
Emergency Light

Switches automatically to white light and runs of its battery when AC power is cut off.

PowerBoost
Dynamic Power-Boost

The dynamic power-boost feature enables the light to display the maximum brightness at all times and intensify non-white colours.


AX3 Lightdrop
Talkback+

Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.

AX3 Lightdrop
Seamless Runtime

Set the length of your event and be sure that your lights won’t run out while still getting the maximum brightness.

The Astera Control App
Flicker Free

Astera allows to adjust the PWM frequency to make sure it doesn’t interfere with your camera’s frame rate.


The Astera Control App
Scheduled Standby

Switch lights into power-saving standby and schedule them to wake up when the event starts.

AX3 Lightdrop
Anti-theft

The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.

AX3 Lightdrop
DJ Feature

Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.


The Astera Control App
Effects

Quickly build programs out of colors and effects, trigger them or make them match a beat.

The Astera Control App
Green/Magenta Correction

Adjust green/magenta during content creation to reduce postproduction work.

More...
Other Features

The AsteraApp™ is packed with many additional items and new features are frequently added via software update.
