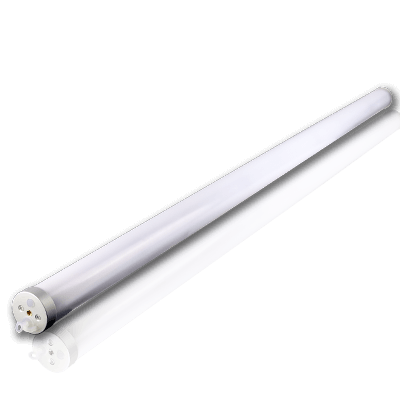

AX1 PixelTube by Astera LED Technology

28W RGBW LEDs – 180° Beam Angle
The AX1 PixelTube is a powerful pixel controllable LED RGBW baton that can be mounted at event and film sites to light up people and objects, or to create indirect lighting effects.  It is a highly creative device that offers an infinite range of possibile implementations.

AX3 Lightdrop

AX3 Lightdrop by Astera

Optical

Colours: RGBW
Total LED power: 28W
Lumens: 695Lm
CRI: up to 88
Strobe: 0-25Hz
Beam Angle: 180˚
Pixels: 16

Control

Wireless Modules: 865-870MHz | 902-928MHz | 2.4GHz
Range: 300m | 330 Yards
DMX: Supports CRMX and W-DMX

Electrical

Battery: LG Chem Lithium-ion
Battery Lifetime: 70% after 300 cycles
Battery Runtime: Up to 20 hours
LED Lifetime: 50.000 Hours
Charging time (nominal): 7 Hours
Input Voltage (charger): 90-264V 47-63Hz
Input Voltage (Light): 48V 0.5A

Construction

Housing: Polycarbonate, metal endcap
IP Rating: IP65
Relative humidity: 0-100%
Operating Temperature: 0-40 ˚C | 32-104 ˚F
Weight: 1kg |2.2Lbs
Dimensions: Ø42 x 1035mm | Ø1.6 x H40.7 inches


Astera ARC1


AsteraBox


CRMX Nova TX


W-DMX Transmitter

Astera System

A smart lighting control system where Infrared remote, wireless DMX and app work together to enable big setups on stage & events that can be set up, monitored and adjusted in a fast and convenient way.

Control Fixtures

Create complex programs out of colors, effects and settings.  The fixtures will remember and repeat these effects without requiring a constant wireless link.  Quickly create groups of lights, assign positions and select which fixtures should receive commands.

Monitor Lights

Keep a complete overview over the status and all settings of your fixtures while you operate them.
View battery status, radio signal, DMX address and which stage lights or fixture you have targeted.
Diagnose individual fixtures and even get informed if one is being moved or switched off.
This works while you control lights by the app but also if lights are controlled via DMX.

Set-Up Faster

Set up your entertainment fixtures conveniently out of the distance.
Set DMX address and DMX footprint for one or several fixtures; over 50 units can be prepared in less than 5 minutes out of a distance.
After your job, do a quick master reset of all settings or a partial one of only selected settings.

LumenRadio

The AsteraBox works as a wireless DMX transmitter; just connect it with the included XLR adapter to your DMX console and you can transmit 1 DMX universe with CRMX technology, the most stable Wireless DMX protocol available in the Stage Lighting and entertainment industry.

Full Compatibility

Astera fixtures can be controlled by LumenRadio CRMX transmitters and also by W-DMX from wireless solutions (up to G4S).
These Battery Operated Fixtures support both wireless DMX standards so you can use them together with almost all other wireless fixtures and transmitters.

Simple commands like ON/OFF, colors, preloaded effects etc can be sent with our infrared remote control directly to the fixtures.
When programming lights with the AsteraApp, the IR remote can be used for confirming settings on individual entertainment fixtures.

Astera LED Lighting System

Unique Astera Features

AX3 Lightdrop
Talkback+

Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.

AX3 Lightdrop
Seamless Runtime

Set the length of your event and be sure that your lights won’t run out while still getting the maximum brightness.

AX3 Lightdrop
TruColor Calibration

100% colour consistency through any batch.  It can hit exact colour temperatures and reproduce standard filter gels.


AX3 Lightdrop
Filming Tools

Adjustable PWM frequency to avoid flickering, green/purple balance to minimize post-production work.

AX3 Lightdrop
Anti-theft

The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.

AX3 Lightdrop
DJ Feature

Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.


AX3 Lightdrop
Scheduled Stand-By

Switch lights into power-saving standby and schedule them to wake up when the event starts.

AX3 Lightdrop
Dynamic Power-Boost

The dynamic power-boost feature enables the light to display the maximum brightness at all times and intensify non-white colors.

AX3 Lightdrop
Emergency Light

Switches automatically to white light and runs of its battery when AC power is cut off.
