Coming in October 2019
Film Lighting Tube | Hyperion Tube was especially designed for the Film, Broadcasting and Cinema industries.
After the enormous success of the Titan Tube, Astera has created the double length Hyperion Tube which measures 2031mm and 79.96 inches. Double the LEDs, double the batteries, double the brightness, double the pixels and the same high-quality light with App, CRMX and on-tube control and wired DMX option.
Colours: Red, Green, Blue, Mint, Amber
Total LED power: 144W
Maximum power draw: 92W
Luminous flux: 5900Lm
Emittance @1m: 1570Lx
Beam Angle: 120˚
Field Angle: 180˚

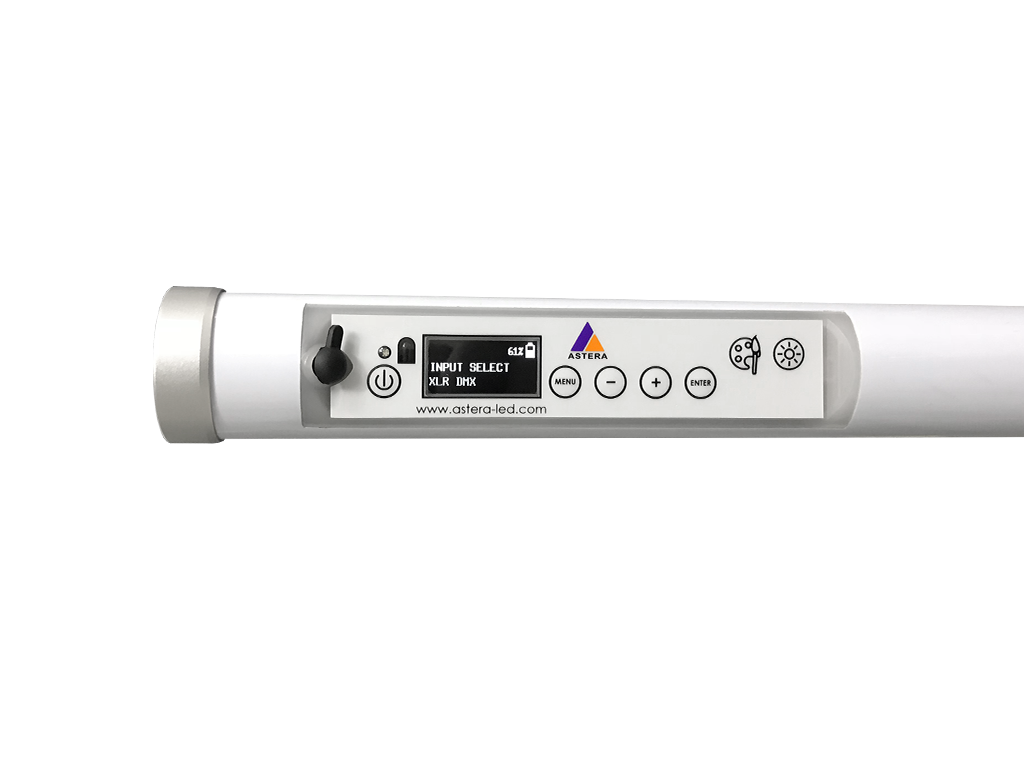

Backside Display with HSI control
Wireless Modules: 865-870MHz | 902-928MHz | 2.4GHz
Range: 300m | 330 Yards
DMX: Wired + Wireless (CRMX & W-DMX)
Battery: LG Chem Lithium-ion
Battery Lifetime: 70% after 300 cycles
Battery Runtime: Up to 20 hours
LED Lifetime: 50.000 Hours
Charging time (nominal): 3 Hours
Input Voltage : 24V 2A
Housing: Polycarbonate, metal endcap
IP Rating: IP65
Relative humidity: 0-100%
Operating Temperature: 0-40 ˚C | 32-104 ˚F
Weight: 2.90kg | 6.39Lbs
Dimensions: 042 x 2031mm | 01.6” x 79.9”
CRMX Nova TX
A smart lighting control system where Infrared remote, wireless DMX and app work together to enable big setups on stage & events that can be set up, monitored and adjusted in a fast and convenient way.
Create complex programs out of colors, effects and settings. The fixtures will remember and repeat these effects without requiring a constant wireless link. Quickly create groups of lights, assign positions and select which fixtures should receive commands.
Keep a complete overview over the status and all settings of your fixtures while you
View battery status, radio signal, DMX address and which stage lights or fixture you have targeted.
Diagnose individual fixtures and even get informed if one is being moved or switched off.
This works while you control lights by the app but also if lights are controlled via DMX.
Set up your entertainment fixtures conveniently out of the distance.
Set DMX address and DMX footprint for one or several fixtures; over 50 units can be prepared in less than 5 minutes out of a distance.
After your job, do a quick master reset of all settings or a partial one of only selected settings.
The AsteraBox works as a wireless DMX transmitter; just connect it with the included XLR adapter to your DMX console and you can transmit 1 DMX universe with CRMX technology, the most stable Wireless DMX protocol available in the Stage Lighting and entertainment industry.
Astera fixtures can be controlled by LumenRadio CRMX transmitters and also by W-DMX from
wireless solutions (up to G4S).
These Battery Operated Fixtures support both wireless DMX standards so you can use them together with almost all other wireless fixtures and transmitters.
Simple commands like ON/OFF, colors, preloaded effects etc can be sent with our infrared
remote control directly to the fixtures.
When programming lights with the AsteraApp, the IR remote can be used for confirming settings on individual entertainment fixtures.

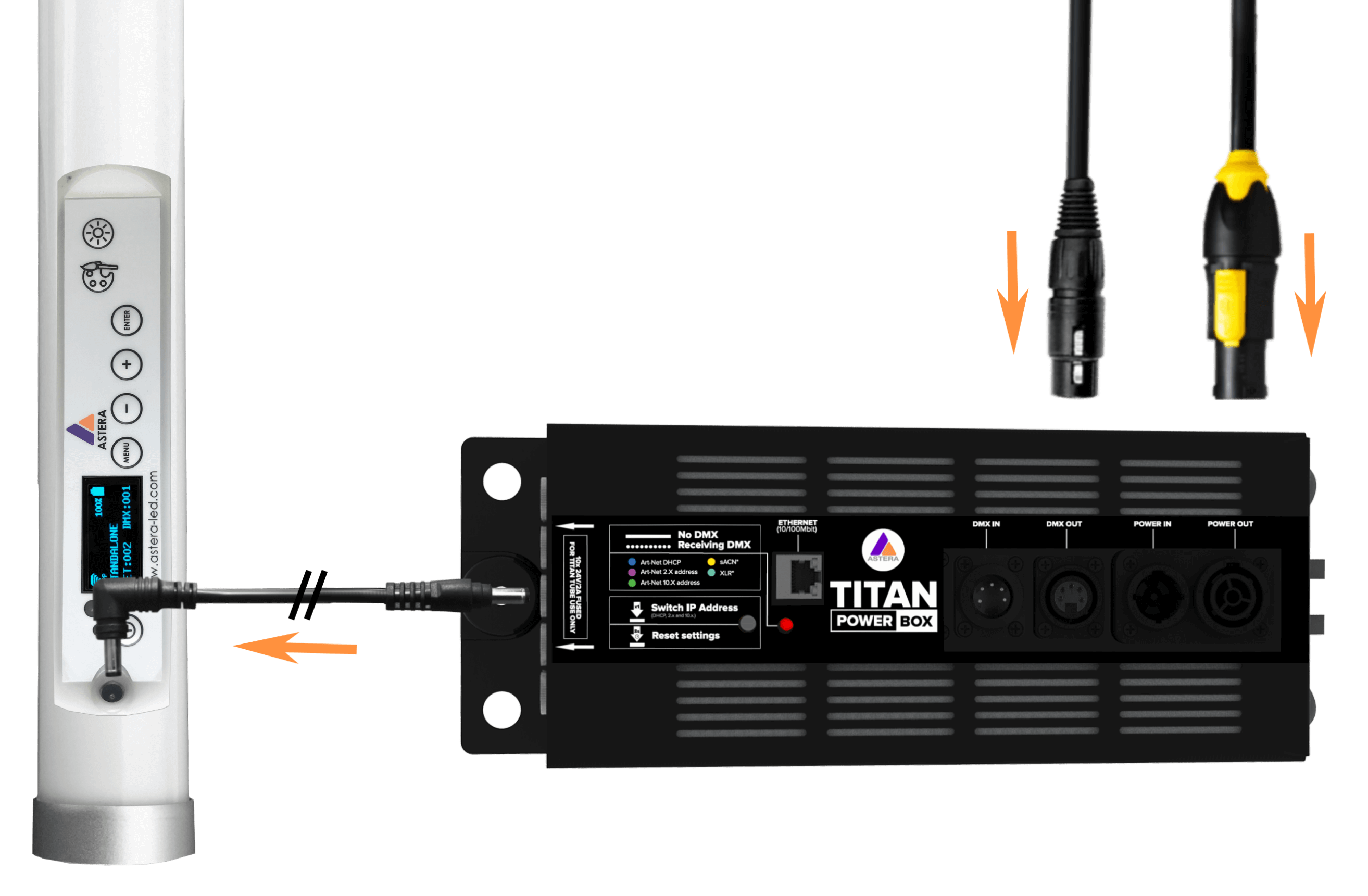

The PowerBox is an efficient tool to wire your Titan Tubes during jobs with power and data whenever you don’t want to use them wirelessly. In addition, the PowerBox can be stored inside the Titan Tube Charging case so you can charge your tubes after a job inside the case without having to remove tubes or PowerBox.
Features Unique to Titan Tube
Individually calibrated lights lead to 100% color consistency and exact color reproduction of color temperature and filter gels.
Switches automatically to white light and runs of its battery when AC power is cut off.
The dynamic power-boost feature enables the light to display the maximum brightness at all times and intensify non-white colours.
Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
Set the length of your event and be sure that your lights won’t run out while still getting the maximum brightness.
Astera allows to adjust the PWM frequency to make sure it doesn’t interfere with your camera’s frame rate.
Switch lights into power-saving standby and schedule them to wake up when the event starts.
The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.
Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.
Quickly build programs out of colors and effects, trigger them or make them match a beat.
Adjust green/magenta during content creation to reduce postproduction work.
The AsteraApp™ is packed with many additional items and new features are frequently added via software update.
